STM8F3PVC R5 - Single-Ended Cordsets
STM8F3PVC R5 - Single-Ended Cordsets
Regular price
$22.84 NZD
Regular price
Sale price
$22.84 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability

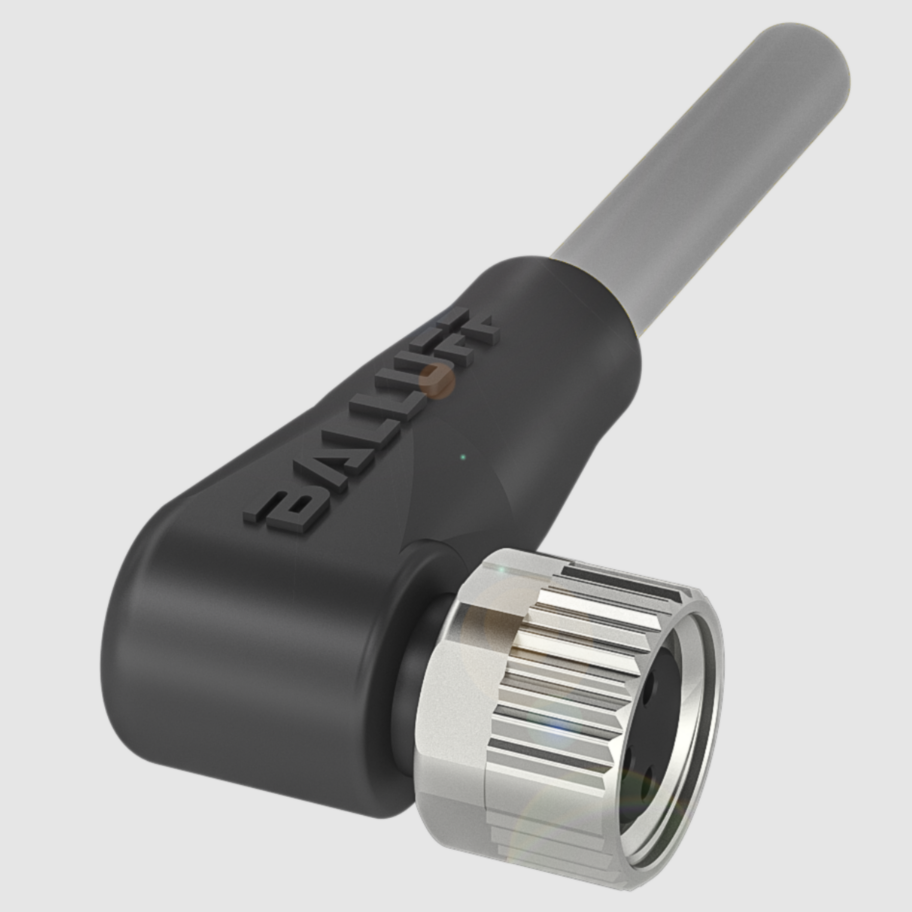

Single-Ended Cordset
M8 - Female, angled, 3-pin, A-coded, PVC gray, 5 m, drag chain compatible.
Details: STM8F3PVC R5
When you purchase this item, you'll receive a high-quality cable from one of our listed brands, found under Compatible Part Numbers. Brands include Balluff, Reer, and PepperL Fuch. If you have a specific preference, please let us know, and we'll do our best to accommodate your request.
| Connection |

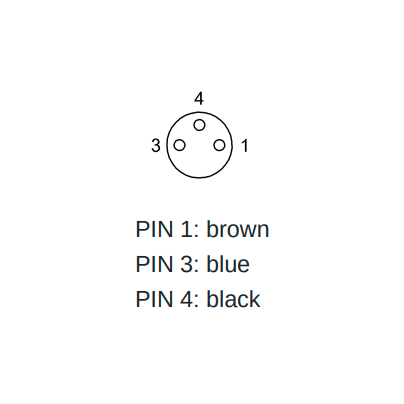

M8x1-Female, angled, 3-pin, A-coded
|
| Cable |
PVC gray, 5 m, drag chain compatible
|
| Number of conductors | 3 |
| Conductor cross-section | 0.34 mm² |
| Cable temperature, fixed routing | -40...105 °C |
| Cable temperature, flexible routing | -5...105 °C |
| Operating voltage Ub |
60 VDC / 60 VAC
|
| Rated current | (40 °C)4.0 A |
| IP rating | IP67, IP69K |
| Approval/Conformity | CE cULus WEEE |
Compatible Part Numbers:
BCC02P6
Typecode / BCC M323-0000-10-001-VX8334-050
R 1200216
PF 109026
V3-WM-5M-PVC
Technical Data Sheet:
15 in stock
