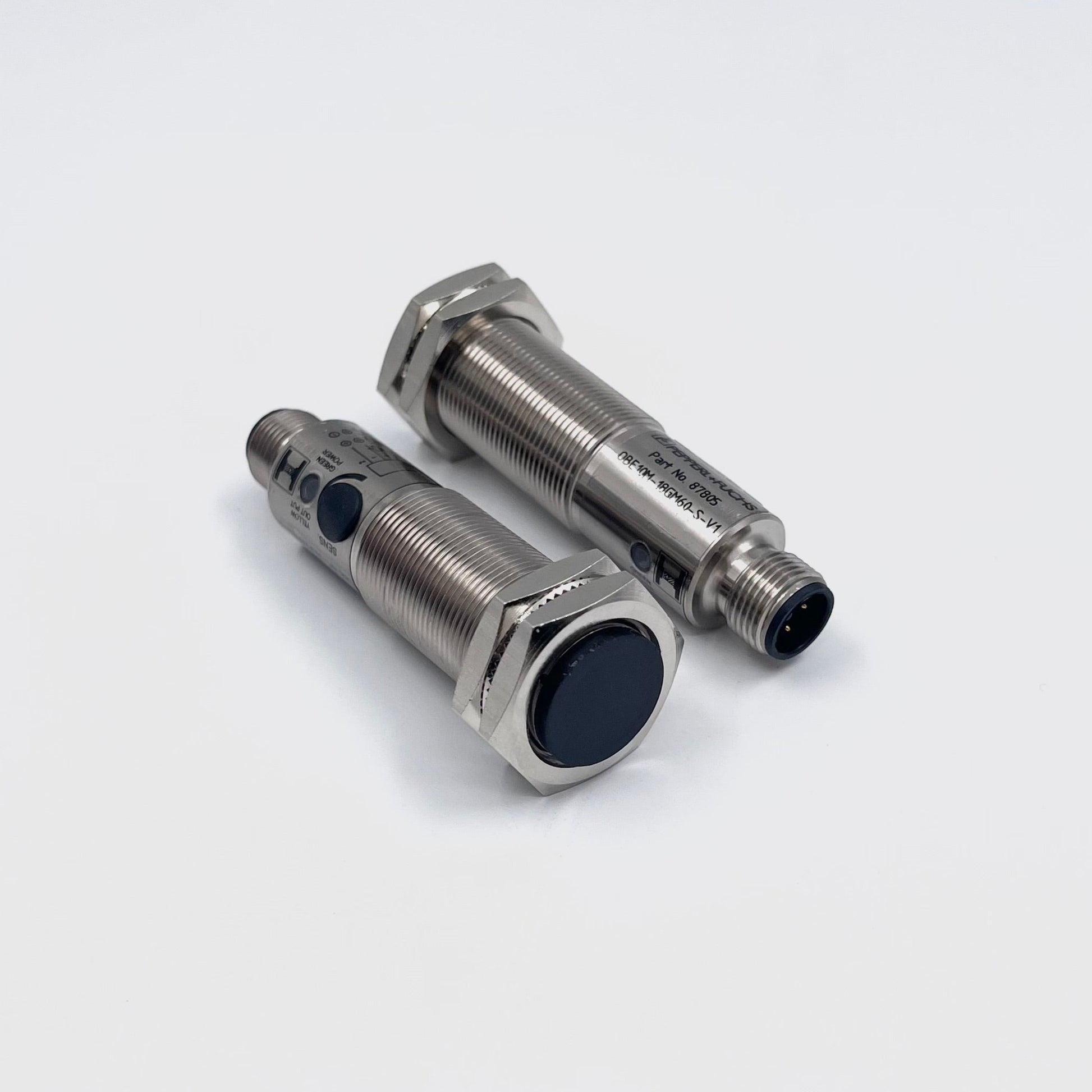

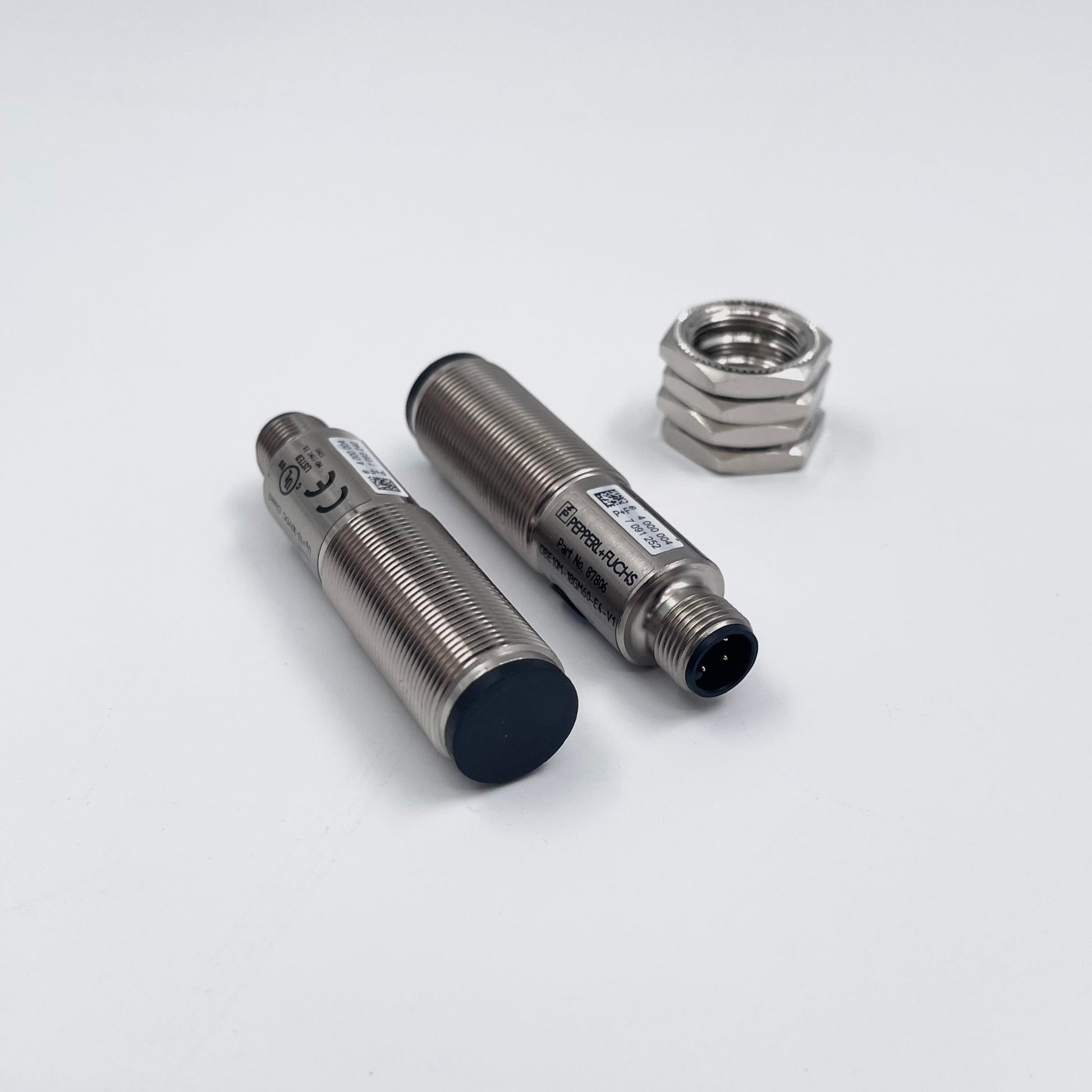

Thru-Beam Sensor Pair, OBE10M-18GM60-SE4-V1-IR-1C / PF 70134680
- Strong metallic housing in cylindrical shape M18 x 1.
- Not sensitive to ambient light.
- Degree of protection IP67.
- Very high detection range.
Details: OBE10M-18GM60-SE4-V1-IR-1C / PF 70134680
Thru-beam sensor (pair)
Compatible Part Numbers:
70134680
OBE10M-18GM60-SE4-V1-IR-1C
087791
OBE10M-18GM60-SE4-V1
Technical Data Sheet:
Datasheet excerpt: Technical data of OBE10M-18GM60-SE4-V1-IR-1C / PF 70134680
| System components | ||
|---|---|---|
| Emitter | OBE10M-18GM60-S-V1-IR-1C | |
| Receiver | OBE10M-18GM60-E4-V1-IR-1C | |
| General specifications | ||
| Effective detection range | 0 ... 10 m | |
| Threshold detection range | 17 m | |
| Light source | IRED | |
| Light type | Infrared LED | |
| Diameter of the light spot | approx. 55 mm at 1 m | |
| Opening angle | approx. 1.6 ° | |
| Optical face | frontal | |
| Ambient light limit | EN 60947-5-2 10000 Lux | |
| Functional safety related parameters | ||
| MTTFd | 564 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Indicators/operating means | ||
| Operation indicator | LED green: on - power on flashing (4 Hz) - short circuit |
|
| Function indicator | Receiver: yellow LED permanently lit - output active permanently off - output inactive flashing (4 Hz) - insufficient operating reserve |
|
| Control elements | light/dark on electrically switchable | |
| Electrical specifications | ||
| Operating voltage | 10 ... 30 V DC | |
| Ripple | max. 10 % | |
| No-load supply current | < 25 mA | |
| Protection class | III | |
| Output | ||
| Switching type | The switching type of the sensor is adjustable. The default setting is: Q - Pin4: NPN output / light-on L/D-On - Pin2: Low-active input | |
| Signal output | 1 NPN output, short-circuit protected, reverse polarity protected, open collector | |
| Switching voltage | max. 30 V DC | |
| Switching current | max. 100 mA , resistive load | |
| Voltage drop | ≤ 2 V DC | |
| Switching frequency | 500 Hz | |
| Response time | ≤ 1 ms | |
| Conformity | ||
| Product standard | EN 60947-5-2 | |
| Approvals and certificates | ||
| UL approval | E87056 , cULus Listed , class 2 power supply , type rating 1 | |
| Ambient conditions | ||
| Ambient temperature | -40 ... 60 °C (-40 ... 140 °F) | |
| Storage temperature | -40 ... 70 °C (-40 ... 158 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP67 | |
| Connection | 4-pin, M12 x 1 connector | |
| Material | ||
| Housing | brass, nickel-plated | |
| Optical face | PMMA | |
| Connector | Plastic | |
| Mass | approx. 23 g per device | |
| Dimensions | ||
| Length | 65.1 mm | |
| Diameter | 18 mm | |
| Thread size | M18 | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270901 |
| ECLASS 12.0 | 27270901 |
| ECLASS 11.0 | 27270901 |
| ECLASS 10.0.1 | 27270901 |
| ECLASS 9.0 | 27270901 |
| ECLASS 8.0 | 27270901 |
| ECLASS 5.1 | 27270901 |
| ETIM 9.0 | EC002716 |
| ETIM 8.0 | EC002716 |
| ETIM 7.0 | EC002716 |
| ETIM 6.0 | EC002716 |
| ETIM 5.0 | EC002716 |
| UNSPSC 12.1 | 39121528 |
