VAZ-HORN-70MM-0..100DBA-8TONE / PF 307857 - Warning Beacon
VAZ-HORN-70MM-0..100DBA-8TONE / PF 307857 - Warning Beacon
Regular price
$270.03 NZD
Regular price
Sale price
$270.03 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability

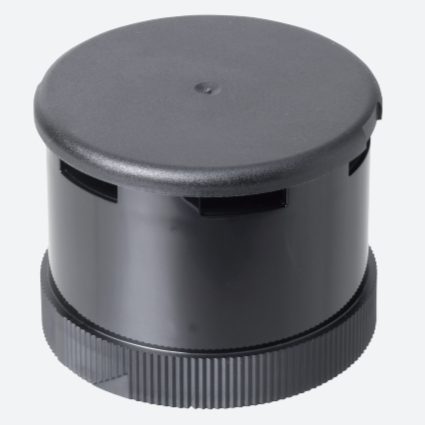

Stack light siren element 8 tone, VAZ-HORN-70MM-0..100DBA-8TONE / PF 307857
- Modular design.
- Bayonet system for simple mounting and dismounting.
- Volume adjustable.
- 8 different tone options.
- 70-mm-series.
Details: VAZ-HORN-70MM-0..100DBA-8TONE / PF 307857
Stack light siren element 8 tone.
Compatible Part Numbers:
307857
VAZ-HORN-70MM-0..100DBA-8TONE
221647
Technical Data Sheet:
Datasheet excerpt: Technical data of VAZ-HORN-70MM-0..100DBA-8TONE / PF 307857
| General specifications | ||
|---|---|---|
| UL File Number | E223176 | |
| Color | black | |
| Frequency | Approx. 900 Hz/2.8 kHz | |
| Loudness | 82 ... 102 dB | |
| Functional safety related parameters | ||
| MTTFd | 600 a | |
| Electrical specifications | ||
| Rated operating voltage | 24 V AC/DC | |
| Rated operating current | ≤ 32 mA | |
| Directive conformity | ||
| Electromagnetic compatibility | ||
| Directive 2014/30/EU | EN 60947-5-1:2004+A1:2009 EN 60947-1:2007 |
|
| Standard conformity | ||
| Degree of protection | EN 60529:2000 | |
| Ambient conditions | ||
| Ambient temperature | -20 ... 50 °C (-4 ... 122 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP65 | |
| Connection | Bayonet system | |
| Dimensions | ||
| Height | 72 mm | |
| Diameter | 70 mm | |
| Life span | min. 5000 hours | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27371214 |
| ECLASS 12.0 | 27371214 |
| ECLASS 11.0 | 27371214 |
| ECLASS 10.0.1 | 27371214 |
| ECLASS 9.0 | 27371214 |
| ECLASS 8.0 | 27371214 |
| ECLASS 5.1 | 27371214 |
| ETIM 9.0 | EC001026 |
| ETIM 8.0 | EC001026 |
| ETIM 7.0 | EC001026 |
| ETIM 6.0 | EC001026 |
| ETIM 5.0 | EC001026 |
| UNSPSC 12.1 | 39121533 |
Out of stock
