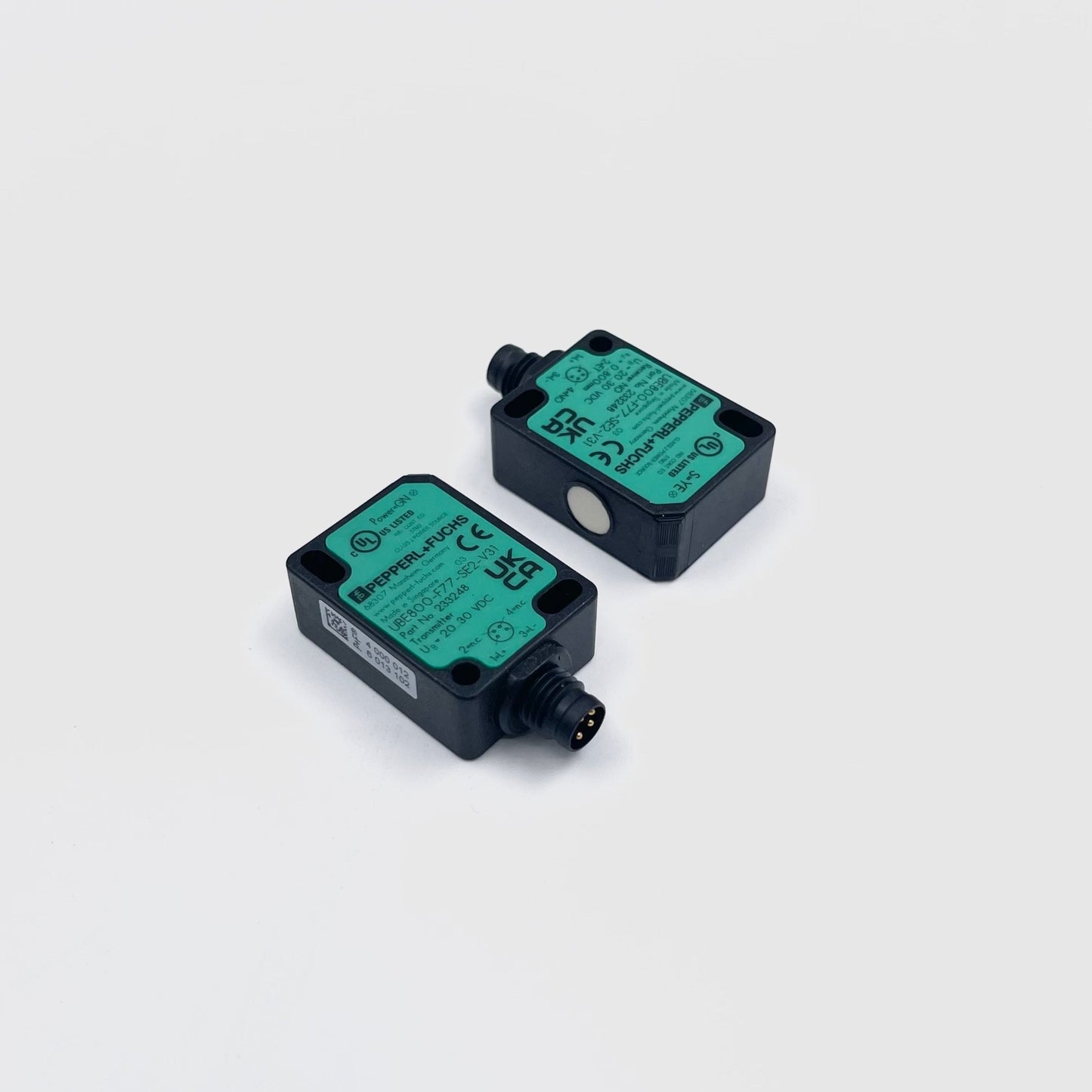

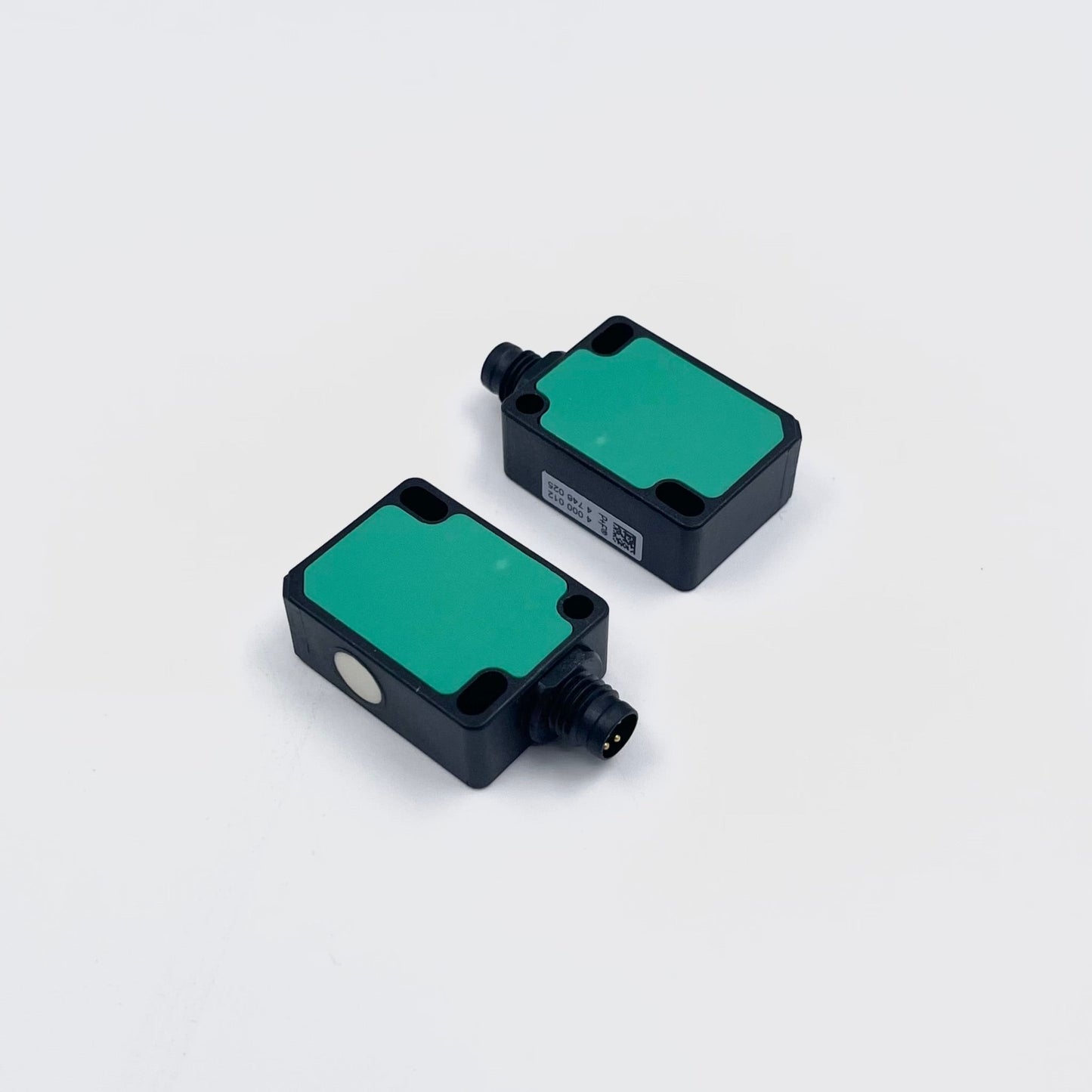

Through-beam ultrasonic Sensor, UBE800-F77-SE2-V31 / PF 233248
- Miniature design.
- 1 switch output PNP, NO.
- Highly visible LEDs for Power ON and switching state.
- High switching frequency.
- Program input.
- Degree of protection IP67.
Details: UBE800-F77-SE2-V31 / PF 233248
Through-beam ultrasonic barrier.
Compatible Part Numbers:
233248
UBE800-F77-SE2-V31
Technical Data Sheet:
Datasheet excerpt: Technical data of UBE800-F77-SE2-V31 / PF 233248
| General specifications | ||
|---|---|---|
| Sensing range | 0 ... 800 mm emitter/receiver spacing | |
| Standard target plate | see table | |
| Transducer frequency | approx. 300 kHz | |
| Response delay | ≤ 5 ms | |
| Limit data | ||
| Permissible cable length | max. 300 m | |
| Indicators/operating means | ||
| LED green | Power on ( emitter ) | |
| LED yellow | switching state ( receiver ) | |
| Electrical specifications | ||
| Rated operating voltage | 24 V DC | |
| Operating voltage | 20 ... 30 V DC , ripple 10 %SS ; 12 ... 20 V DC sensitivity reduced to 80 % | |
| No-load supply current | ≤ 20 mA | |
| Time delay before availability | ≤ 150 ms | |
| Input | ||
| Input type | 1 program input (receiver) | |
| Level | low level : 0 ... 0.7 V ; high level : > 14 V | |
| Input impedance | 16 kΩ | |
| Pulse length | ≥ 3 s | |
| Output | ||
| Output type | 1 switch output PNP, NO | |
| Rated operating current | 200 mA , short-circuit/overload protected | |
| Voltage drop | ≤ 2 V | |
| Switching frequency | 100 Hz | |
| Off-state current | ≤ 0.01 mA | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| Standards | EN IEC 60947-5-2:2020 IEC 60947-5-2:2019 |
|

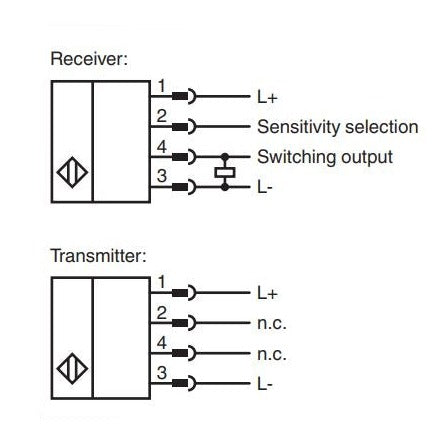

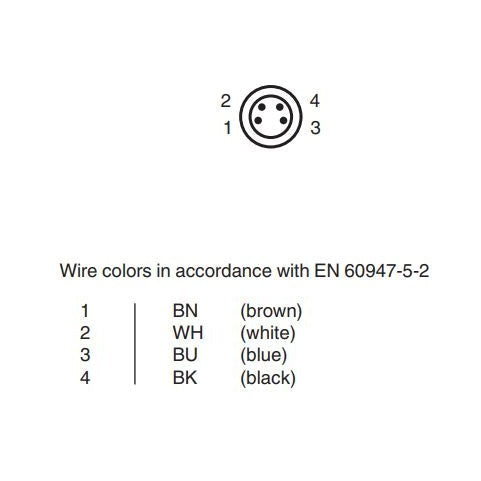

| Approvals and certificates | ||
| UL approval | cULus Listed, Class 2 Power Source | |
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| Ambient conditions | ||
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) | |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) | |
| Shock resistance | 30 g , 11 ms period | |
| Vibration resistance | 10 ... 55 Hz , Amplitude ± 1 mm | |
| Mechanical specifications | ||
| Connection type | M8 x 1 connector , 4-pin | |
| Degree of protection | IP67 | |
| Material | ||
| Housing | Polycarbonate | |
| Transducer | epoxy resin/hollow glass sphere mixture; polyurethane foam | |
| Installation position | any position | |
| Mass | per 10 g | |
| Tightening torque, fastening screws | max. 0.2 Nm | |
| Dimensions | ||
| Height | 31 mm | |
| Width | 12 mm | |
| Length | 23 mm | |
