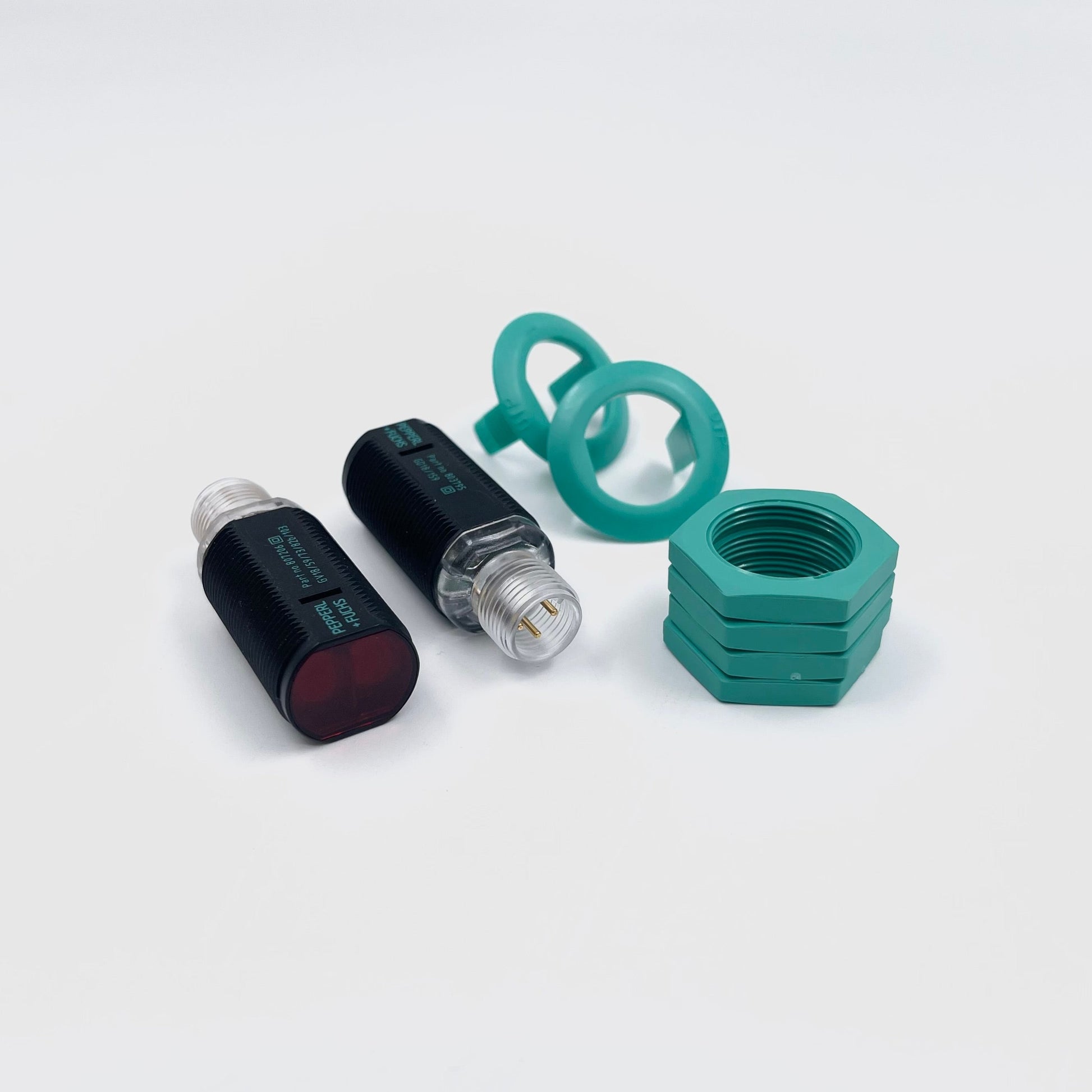

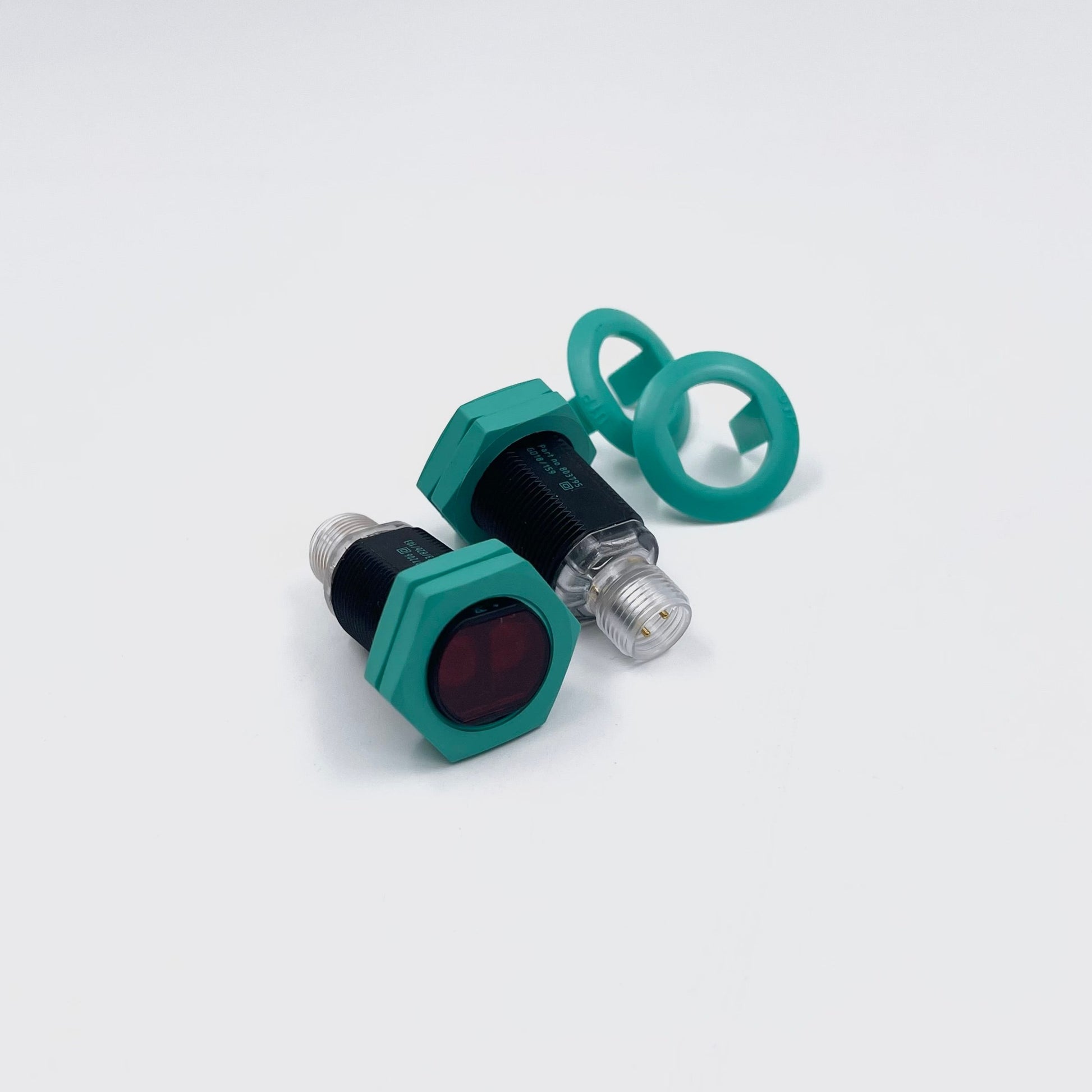

Thru-Beam Sensor, GD18/GV18/59/73/82b/103 - PF 215060
- Efficient Line in a short M18 plastic housing for standard applications.
- Very high detection range.
- 4 LEDs indicator for 360° visibility.
- Version with front optical face.
- DC voltage version.
Details: GD18/GV18/59/73/82b/103 - PF 215060
M18 threaded housing design, plastic housing, front optical face, 20 m detection range, red light, dark on, DC version, PNP output, weak signal output, M12 plug.
Compatible Part Numbers:
125060
GD18/GV18/59/73/82b/103
Technical Data Sheet:
Datasheet excerpt: Technical data of GD18/GV18/59/73/82b/103 - PF 125060
| System components | ||
|---|---|---|
| Emitter | GD18/159 | |
| Receiver | GV18/59/73/82b/103 | |
| General specifications | ||
| Effective detection range | 0 ... 20 m | |
| Threshold detection range | 25 m | |
| Light source | LED | |
| Light type | modulated visible red light , 640 nm | |
| Diameter of the light spot | approx. 1300 mm at 25 m | |
| Opening angle | approx. 3 ° | |
| Optical face | frontal | |
| Ambient light limit | 30000 Lux | |
| Functional safety related parameters | ||
| MTTFd | 630 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Indicators/operating means | ||
| Operation indicator | LED green, statically lit Power on | |
| Function indicator | Receiver: LED yellow, lights up when light beam is free, flashes when falling short of the operating reserve ; OFF when light beam is interrupted | |
| Electrical specifications | ||
| Operating voltage | 10 ... 30 V DC | |
| No-load supply current | < 20 mA | |
| Output | ||

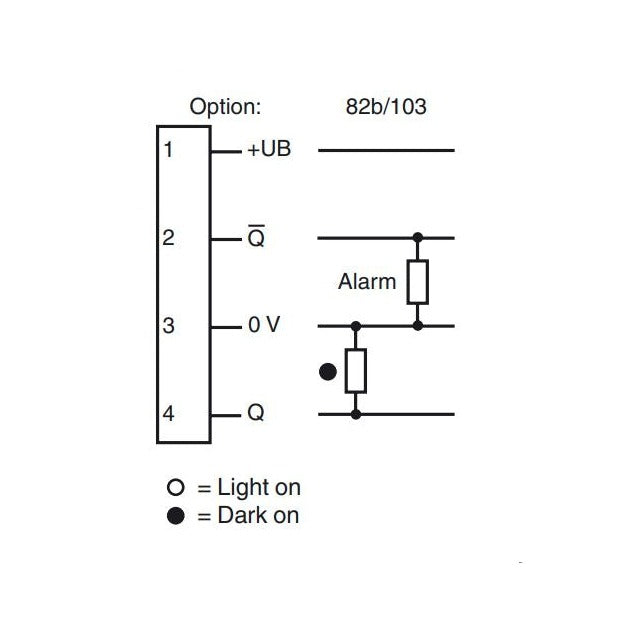

| Stability alarm output | 1 PNP, inactive when falling short of the stability control | |
| Switching type | dark-on | |
| Signal output | 1 PNP, short-circuit protected, open collector | |
| Switching voltage | max. 30 V DC | |
| Switching current | max. 100 mA | |
| Voltage drop | ≤ 1.5 V DC | |
| Switching frequency | 500 Hz | |
| Response time | ≤ 1 ms | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| Product standard | EN 60947-5-2:2007 IEC 60947-5-2:2007 |
|
| Approvals and certificates | ||
| Protection class | II, rated insulation voltage ≤ 250 V AC with pollution degree 1-2 according to IEC 60664-1 | |
| UL approval | cULus Listed, Class 2 Power Source, Type 1 enclosure | |
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| Ambient conditions | ||
| Ambient temperature | -25 ... 60 °C (-13 ... 140 °F) | |
| Storage temperature | -40 ... 70 °C (-40 ... 158 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP67 | |

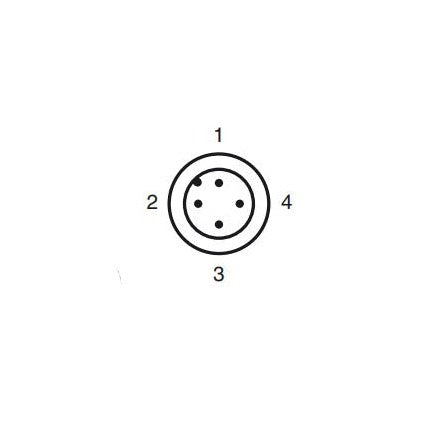

| Connection | 4-pin, M12 x 1 connector | |
| Material | ||
| Housing | PC | |
| Optical face | PMMA | |
| Connector | plastic | |
| Mass | approx. 10 g per device | |
| Dimensions | ||
| Length | 43.9 mm | |
| Diameter | 18 mm | |
| Thread size | M18 | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270901 |
| ECLASS 12.0 | 27270901 |
| ECLASS 11.0 | 27270901 |
| ECLASS 10.0.1 | 27270901 |
| ECLASS 9.0 | 27270901 |
| ECLASS 8.0 | 27270901 |
| ECLASS 5.1 | 27270901 |
| ETIM 9.0 | EC002716 |
| ETIM 8.0 | EC002716 |
| ETIM 7.0 | EC002716 |
| ETIM 6.0 | EC002716 |
| ETIM 5.0 | EC002716 |
| UNSPSC 12.1 | 39121528 |
