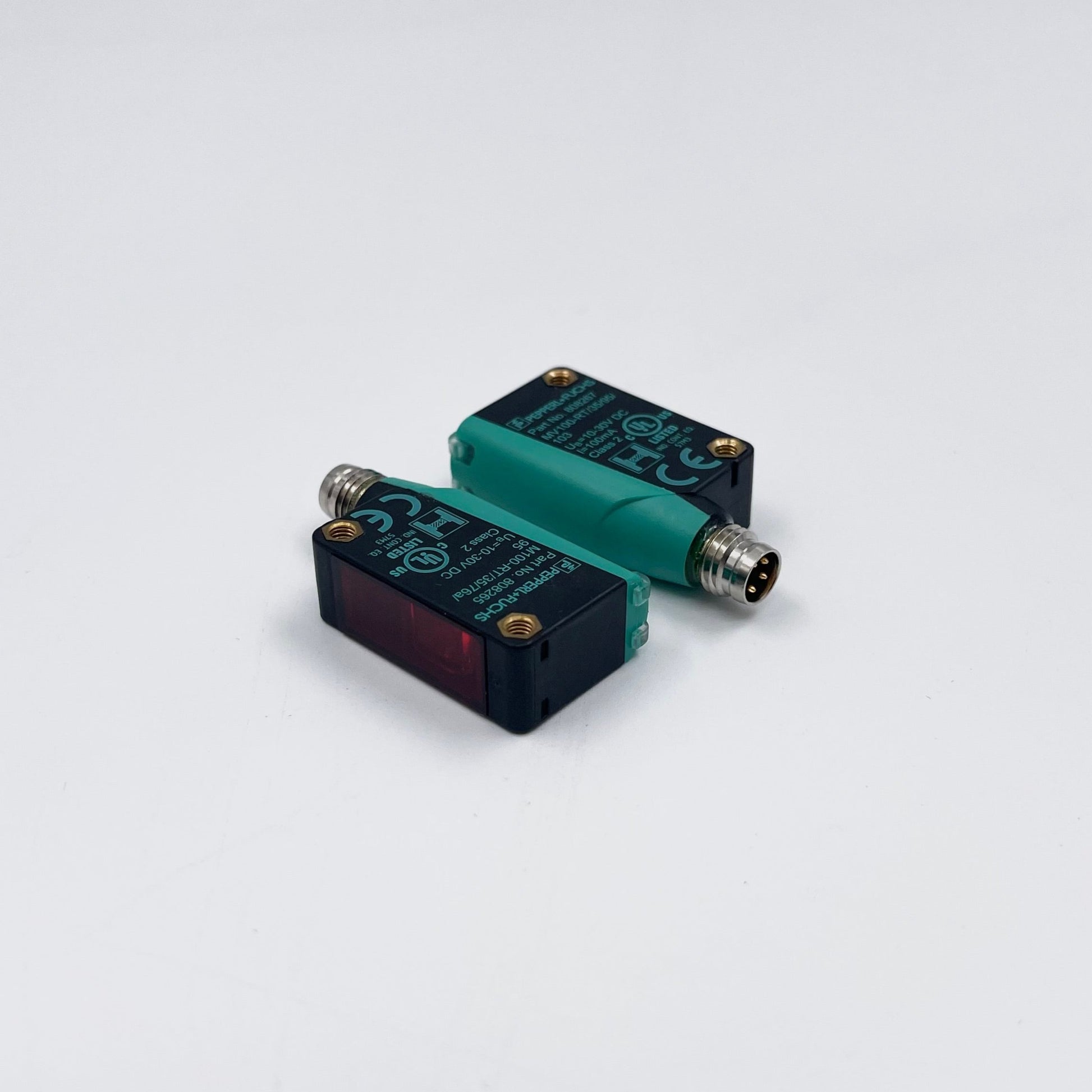

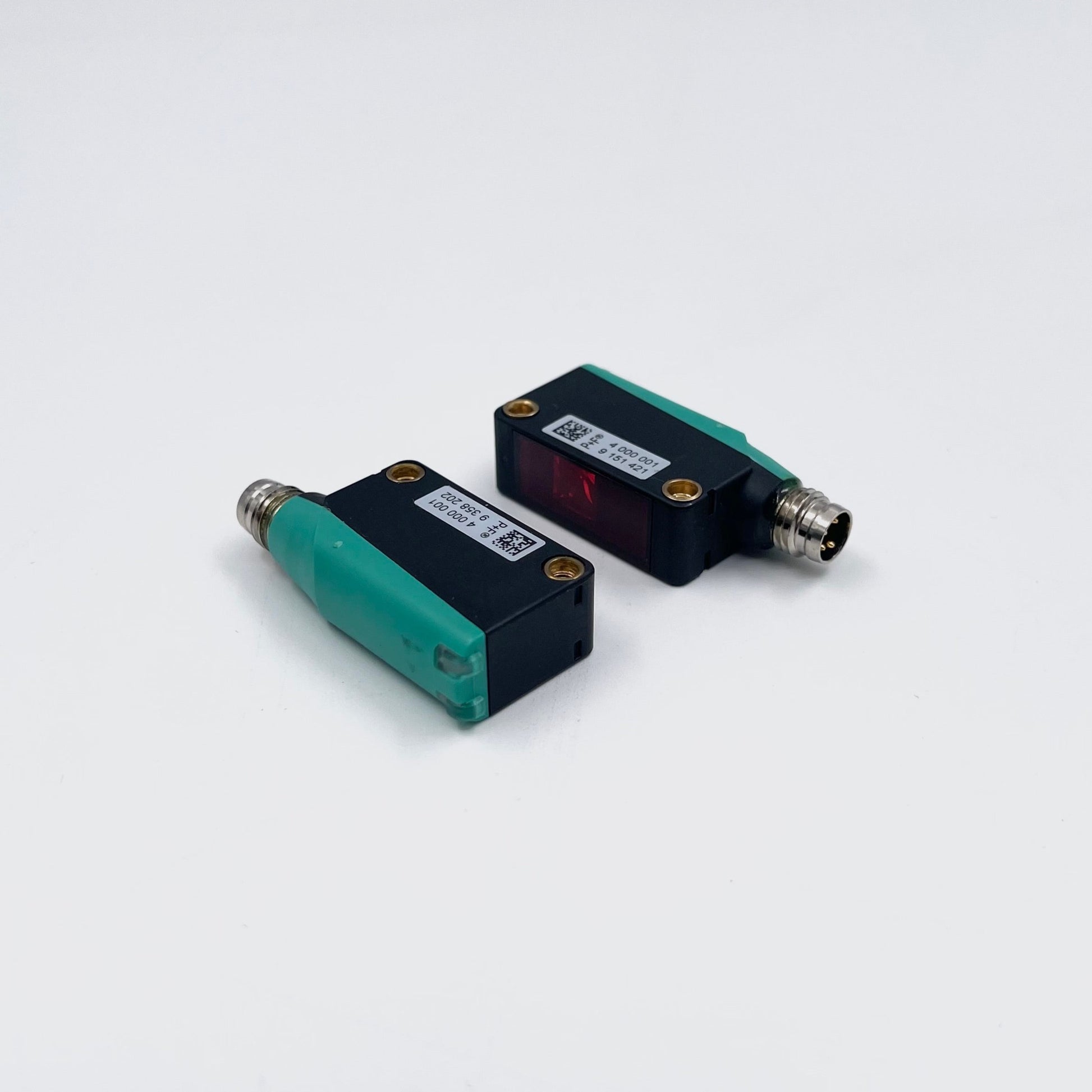

Thru-Beam Sensor (Pair), M100/MV100-RT/35/76a/95/103 - PF 214743
- Miniature design.
- Easy to use.
- Very bright, highly visible light spot.
- Full metal thread mounting.
- Highly visible LEDs for Power ON and switching state.
- Not sensitive to ambient light.
Details: M100/MV100-RT/35/76a/95/103 - PF 214743
Thru-beam sensor20 m detection range, red light, light/dark on, DC version, PNP output, sensitivity adjuster, emitter switch-off, M8 plug.
Compatible Part Numbers:
214743
M100/MV100-RT/35/76a/95/103
Technical Data Sheet:
Datasheet Excerpt: Technical data of M100/MV100-RT/35/76a/95/103 - PF 214743
| System components | ||
|---|---|---|
| Emitter | M100-RT/35/76a/95 | |
| Receiver | MV100-RT/35/95/103 | |
| General specifications | ||
| Effective detection range | 0 ... 20 m | |
| Threshold detection range | 30 m | |
| Light source | LED | |
| Light type | modulated visible red light | |
| Diameter of the light spot | approx. 2 m at a distance of 30 m | |
| Opening angle | approx. 2 ° | |
| Optical face | frontal | |
| Ambient light limit | EN 60947-5-2 | |
| Functional safety related parameters | ||
| MTTFd | 860 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Indicators/operating means | ||
| Operation indicator | LED green: power on | |
| Function indicator | Receiver: LED yellow, lights up when light beam is free, flashes when falling short of the operating reserve ; OFF when light beam is interrupted | |
| Control elements | sensitivity adjustment | |
| Control elements | Light-on/dark-on changeover switch | |
| Electrical specifications | ||
| Operating voltage | 10 ... 30 V DC | |
| Ripple | max. 10 % | |
| No-load supply current | Emitter: ≤ 15 mA Receiver: ≤ 8 mA |
|

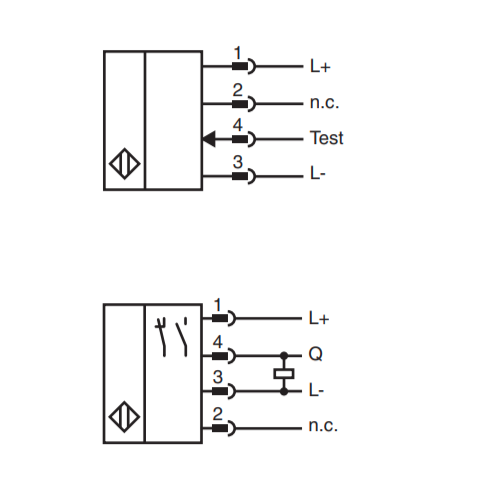

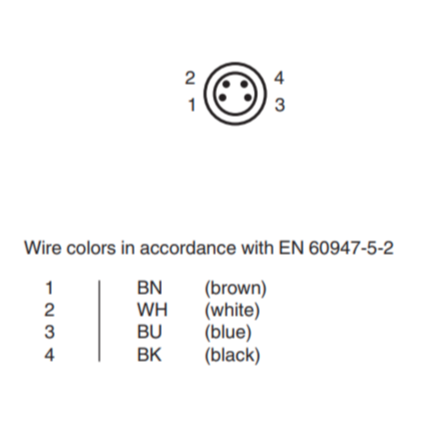

| Input | ||
| Test input | emitter deactivation at +UB | |
| Output | ||
| Switching type | The switching type of the sensor is adjustable. The default setting is: light-on | |
| Signal output | 1 PNP output, short-circuit protected, reverse polarity protected, open collector | |
| Switching voltage | max. 30 V DC | |
| Switching current | max. 100 mA , resistive load | |
| Voltage drop | ≤ 1.5 V DC | |
| Switching frequency | 250 Hz | |
| Response time | 2 ms | |
| Conformity | ||
| Product standard | EN 60947-5-2 | |
| Approvals and certificates | ||
| UL approval | cULus Listed, Class 2 Power Source or listed Power Supply with a limited voltage output with (maybe integrated) fuse (max. 3.3 A according UL248), Type 1 enclosure | |
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| Ambient conditions | ||
| Ambient temperature | -30 ... 60 °C (-22 ... 140 °F) | |
| Storage temperature | -40 ... 70 °C (-40 ... 158 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP67 | |
| Connection | M8 x 1 connector, 4-pin | |
| Material | ||
| Housing | PC (Polycarbonate) | |
| Optical face | PMMA | |
| Mass | approx. 20 g (emitter and receiver) | |
| Tightening torque, fastening screws | 0.6 Nm | |
| Dimensions | ||
| Height | 31 mm | |
| Width | 11 mm | |
| Depth | 20 mm | |
Classifications:
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270901 |
| ECLASS 12.0 | 27270901 |
| ECLASS 11.0 | 27270901 |
| ECLASS 10.0.1 | 27270901 |
| ECLASS 9.0 | 27270901 |
| ECLASS 8.0 | 27270901 |
| ECLASS 5.1 | 27270901 |
| ETIM 9.0 | EC002716 |
| ETIM 8.0 | EC002716 |
| ETIM 7.0 | EC002716 |
| ETIM 6.0 | EC002716 |
| ETIM 5.0 | EC002716 |
| UNSPSC 12.1 | 39121528 |
