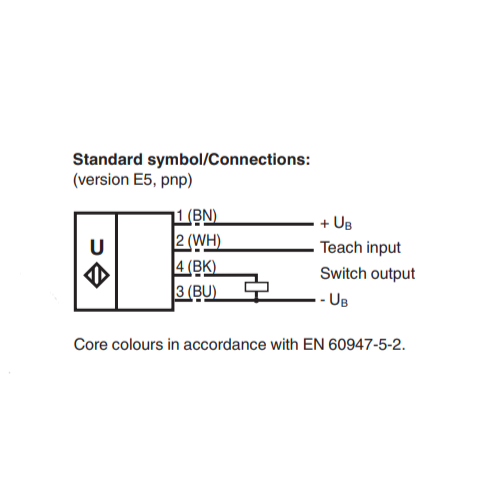

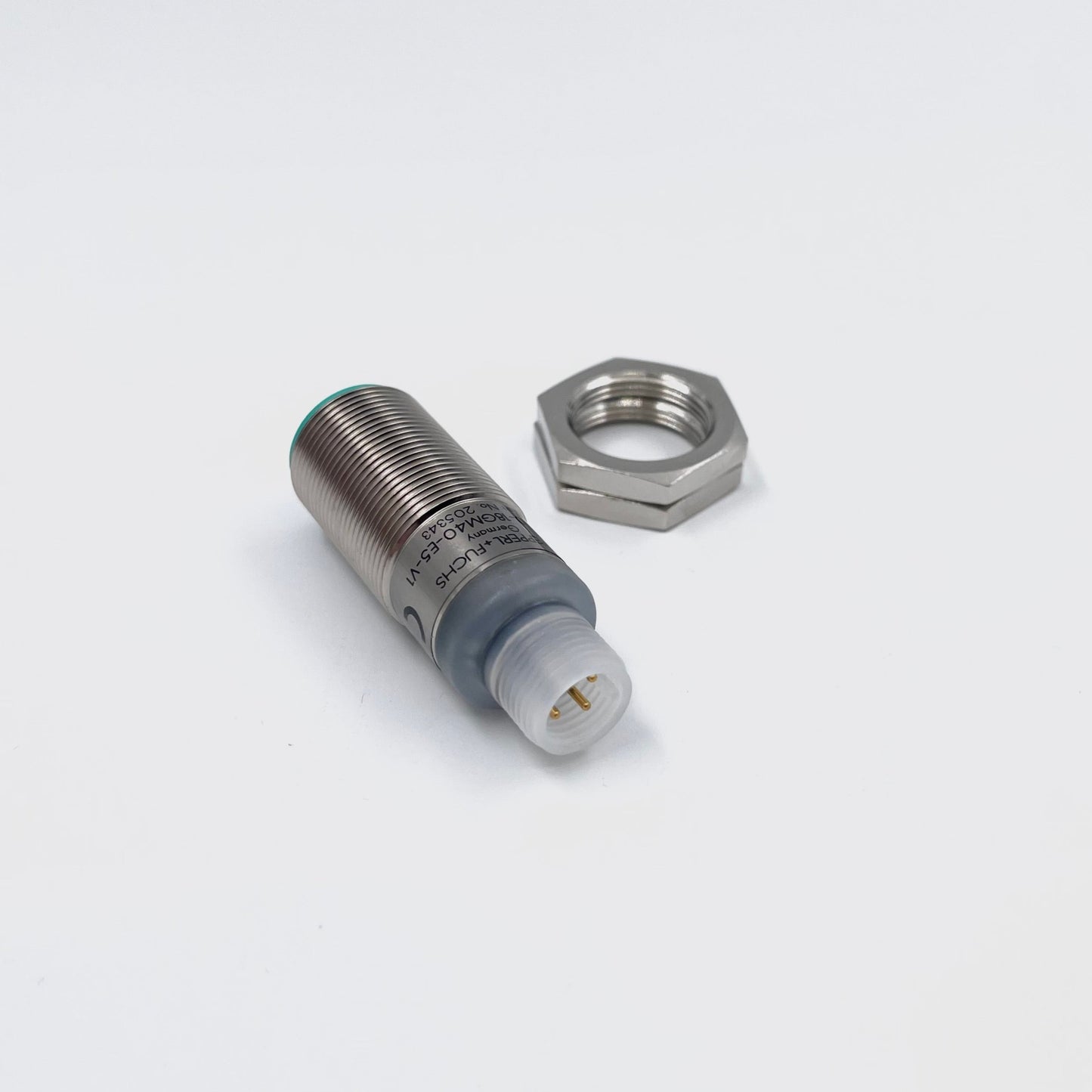

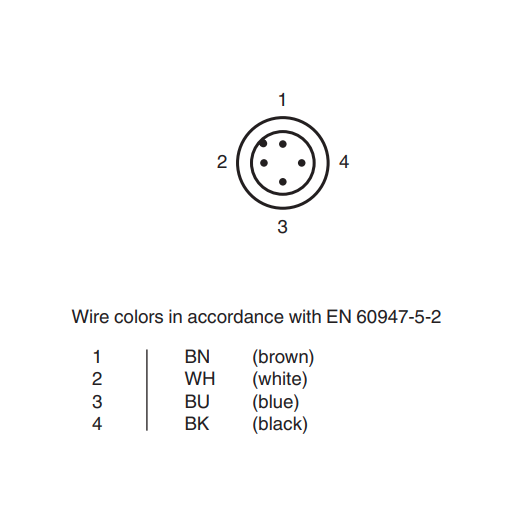

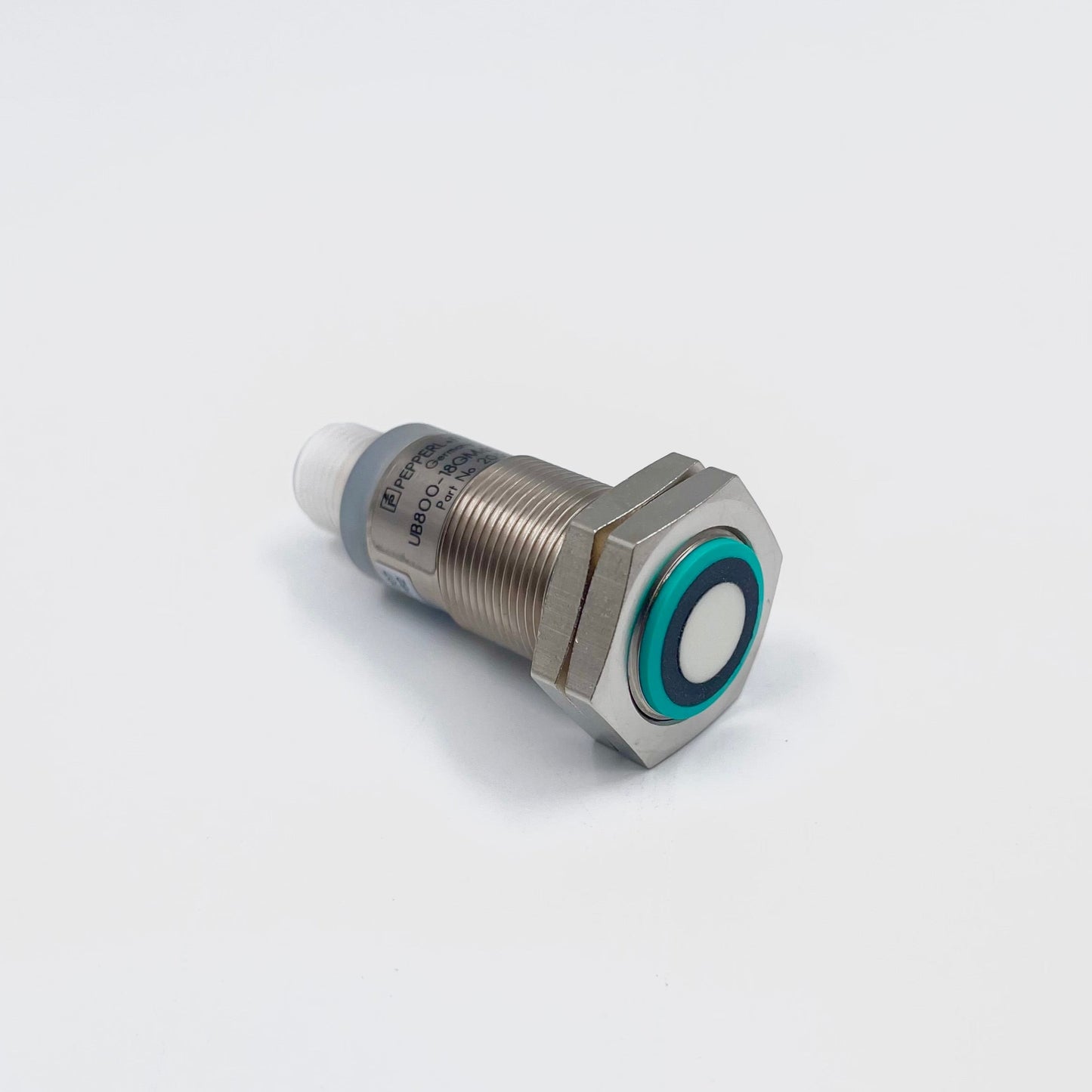

Ultrasonic sensor, single head system, UB800-18GM40-E5-V1 / PF 205343
- Short design, 40 mm.
- 1 switching output E5, PNP NO/NC, programmable.
- Function indicators visible from all directions.
- Switching output.
- 5 different output functions can be set.
- Program input.
- Temperature compensation.
Details: UB800-18GM40-E5-V1 / PF 205343
Single Head System.
Compatible Part Numbers:
205343
UB800-18GM40-E5-V1
Technical Data Sheet:
Datasheet excerpt: Technical data of UB800-18GM40-E5-V1 / PF 205343
| General specifications | ||
|---|---|---|
| Sensing range | 50 ... 800 mm | |
| Adjustment range | 70 ... 800 mm | |
| Dead band | 0 ... 50 mm | |
| Standard target plate | 100 mm x 100 mm | |
| Transducer frequency | approx. 255 kHz | |
| Response delay | approx. 100 ms | |
| Indicators/operating means | ||
| LED green | Power on | |
| LED yellow | indication of the switching state flashing: program function object detected |
|
| LED red | solid red: Error red, flashing: program function, object not detected |
|
| Electrical specifications | ||
| Operating voltage | 10 ... 30 V DC , ripple 10 %SS | |
| No-load supply current | ≤ 20 mA | |
| Input | ||
| Input type | 1 program input operating distance 1: -UB ... +1 V, operating distance 2: +6 V ... +UB input impedance: > 4,7 kΩ program pulse: ≥ 1 s |
|
| Output | ||
| Output type | 1 switching output E5, PNP NO/NC, programmable | |
| Rated operating current | 200 mA , short-circuit/overload protected | |
| Default setting | Switch point A1: 70 mm , Switch point A2: 800 mm | |
| Voltage drop | ≤ 3 V | |
| Repeat accuracy | ≤ 1 % | |
| Switching frequency | ≤ 4 Hz | |
| Range hysteresis | 1 % of the set operating distance | |
| Temperature influence | ± 1.5 % of full-scale value | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| Standards | EN IEC 60947-5-2:2020 IEC 60947-5-2:2019 |
|
| Approvals and certificates | ||
| UL approval | cULus Listed, Class 2 Power Source | |
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| Ambient conditions | ||
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) | |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) | |
| Mechanical specifications | ||
| Connection type | Connector plug M12 x 1 , 4-pin | |
| Degree of protection | IP67 | |
| Material | ||
| Housing | brass, nickel-plated | |
| Transducer | epoxy resin/hollow glass sphere mixture; foam polyurethane, cover PBT | |
| Mass | 25 g | |
| Dimensions | ||
| Length | 40 mm | |
| Diameter | 18 mm | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27272803 |
| ECLASS 12.0 | 27272803 |
| ECLASS 11.0 | 27272803 |
| ECLASS 10.0.1 | 27272803 |
| ECLASS 9.0 | 27272803 |
| ECLASS 8.0 | 27272803 |
| ECLASS 5.1 | 27272803 |
| ETIM 9.0 | EC001849 |
| ETIM 8.0 | EC001849 |
| ETIM 7.0 | EC001849 |
| ETIM 6.0 | EC001849 |
| ETIM 5.0 | EC001849 |
| UNSPSC 12.1 | 41111960 |
