EOS2 454 A

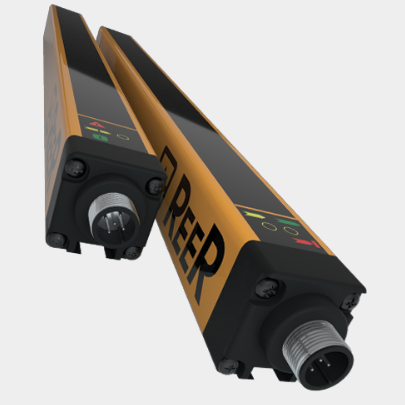

Hand Detection Safety Light Curtain with Automatic Restart.
Compatible Part Numbers:
1320302
Features:
| Safety level | Type 2 - PL c |
| Protected height (mm) | 460 |
| Resolution (mm) | 40 |
| Controlled height (mm) | 450 |
| Max. range (m) | 12 |
| Restart | Automatic |
| Functioning system | Emitter / Receiver |
| Safety level (SIL / PL) | Type 2 - SIL 1 - SILCL 1 - PL c - Cat. 2 |
| Operating temperature (°C) | - 30 ... 55 |
| Response time (ms) | 6 |
| Number of beams | 16 |
| Max. length of the connection cables (m) | 100 (50 between Master and Slave) |
| Signalling | LEDs for light curtain's status and diagnostics |
| Safety output type | 2 fail-safe PNP (400 mA at 24 VDC) with protection against short circuit, overload and reverse polarity |
| Connections | M12 5-pole connectors |
| MTTFD (ISO13849) years | 373,4 |
| PFHD (IEC 61508) | 2,75E-08 |
| Safety outputs | 2 OSSD PNP (400 mA at 24 VDC) |
| Safety functions | With external module |
| Detection | Hand |
| Protective enclosures | None |
| Packaging dimensions HxLxW (mm) | 145 x 540 x 200 |
| Product class | C |
| Custom tariff | 85365019 |
Electrical Data:
| Power supply (VDC) | 24 ± 20% |
Mechanical Data:
| Overall height (mm) | 513 |
| Cross section dimensions (mm) | 28 x 30 |
| Degree of protection | IP65 - IP67 |
| Fastening | Back slot with set of LE type brackets (included) or to the top and lower end with swivel brackets SFB E (optional) |
| Gross weight (g) | 1826,96 |
Quick Installation Guide:
