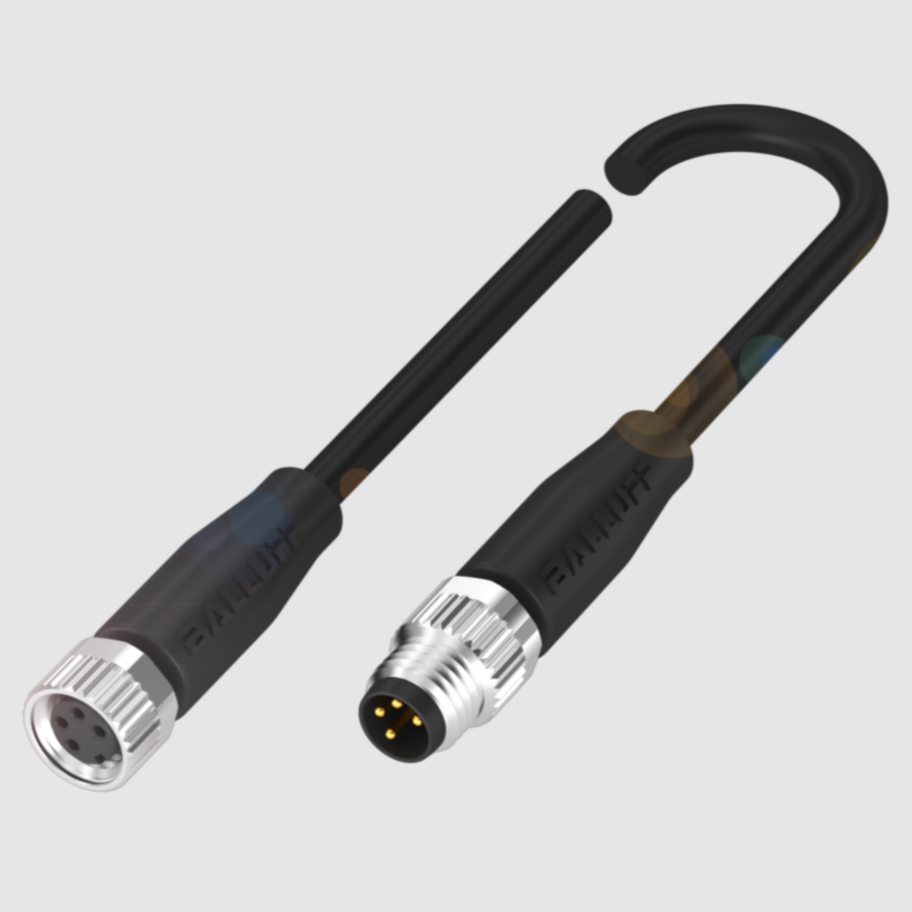

Double-Ended Cordset
M8-Male, straight, 4-pin, A-coded, M8-Female, straight, 4-pin, A-coded, PUR black, 2 m, drag chain compatible.
Details: STM8MM8F4PUR S2
When you purchase this item, you'll receive a high-quality cable from one of our listed brands, found under Compatible Part Numbers. Brands include Balluff, Reer, and PepperL Fuch. If you have a specific preference, please let us know, and we'll do our best to accommodate your request.
| Connection 1 |
M8x1-Female, straight, 4-pin, A-coded
|
| Connection 2 |
M8x1-Male, straight, 4-pin, A-coded
|
| Cable |
PUR black, 2 m, drag chain compatible
|
| Number of conductors | 4 |
| Cable temperature, fixed routing | -50...90 °C |
| Cable temperature, flexible routing | -25...90 °C |
| Operating voltage Ub |
60 VDC / 60 VAC
|
| Rated current | (40 °C)4.0 A |
| IP rating |
IP67, IP69K/IP67, IP69K
|
| Approval/Conformity |
CE cULus WEEE
|
Compatible Part Numbers:
BCC02TL
Typecode / BCC M314-M314-30-304-PX0434-020
Technical Data Sheet:
2 in stock
